Custom Box design: 10" Sound Qubed HDS210 in 1.8 cf @ 34Hz. Comments, critique & advice welcome.

Recommended Posts

See attached pdf for design & WinISO charts. This is the first time I've attempted this so I'm sure there's plenty wrong - looking to learn!

Powered by a  memphis 16-st1000d pushing 600w rms at 2 ohm.

Box 2 design.pdf

Share this post


Link to post
Share on other sites

Perhaps a noob question on my part, but I am not so sure anyone is so keenly confident on clicking on links on the internet.  Might be better to attach what you have as a picture in the thread.

Share this post


Link to post
Share on other sites

looks, good. whats the location of box , power and vehicle gonna be?

Share this post


Link to post
Share on other sites

You did a fine job sketching that up. Personally I would use more port area, it looks like it would be a bit noisy with that narrow a port.

Otherwise my primary question is how you came to decide on the enclosure volume. I couldn't see the WinISD "charts" but I would like to hear your thoughts anyway.

Share this post


Link to post
Share on other sites
On 10/5/2016 at 4:33 PM, altoncustomtech said:

You did a fine job sketching that up. Personally I would use more port area, it looks like it would be a bit noisy with that narrow a port.

Otherwise my primary question is how you came to decide on the enclosure volume. I couldn't see the WinISD "charts" but I would like to hear your thoughts anyway.

Thank you, I read that its better to oversize the volume rather than undersize so I kind of just picked 1.8cuf. From that volume I used WinISD to figure port area for 34Hz. TBH I checked again with the space I have in my pickup and I don't want to use all that space. I'm gonna start a second design tonight that will probably be a partial wedge w/ slotted port.

Share this post


Link to post
Share on other sites
On 10/5/2016 at 0:45 AM, ///M5 said:

Perhaps a noob question on my part, but I am not so sure anyone is so keenly confident on clicking on links on the internet.  Might be better to attach what you have as a picture in the thread.

Imgur link here.

Share this post


Link to post
Share on other sites
On 10/5/2016 at 4:22 PM, bluedreamz said:

looks, good. whats the location of box , power and vehicle gonna be?

Behind passenger seat in 1999 nissan frontier king cab. 600w rms @ 2ohm

Share this post


Link to post
Share on other sites
19 hours ago, elanderjab said:

Behind passenger seat in 1999 nissan frontier king cab. 600w rms @ 2ohm

yeah, that'll sound great man. enjoy. - i would place the port and box on the oppisite side of you.

Share this post


Link to post
Share on other sites
2 hours ago, bluedreamz said:

yeah, that'll sound great man. enjoy. - i would place the port and box on the oppisite side of you.

Yea in a extended cab truck I like the speaker  facing the floor on the passenger side and the port firing straight up right beside the side window if there is one.

Share this post


Link to post
Share on other sites

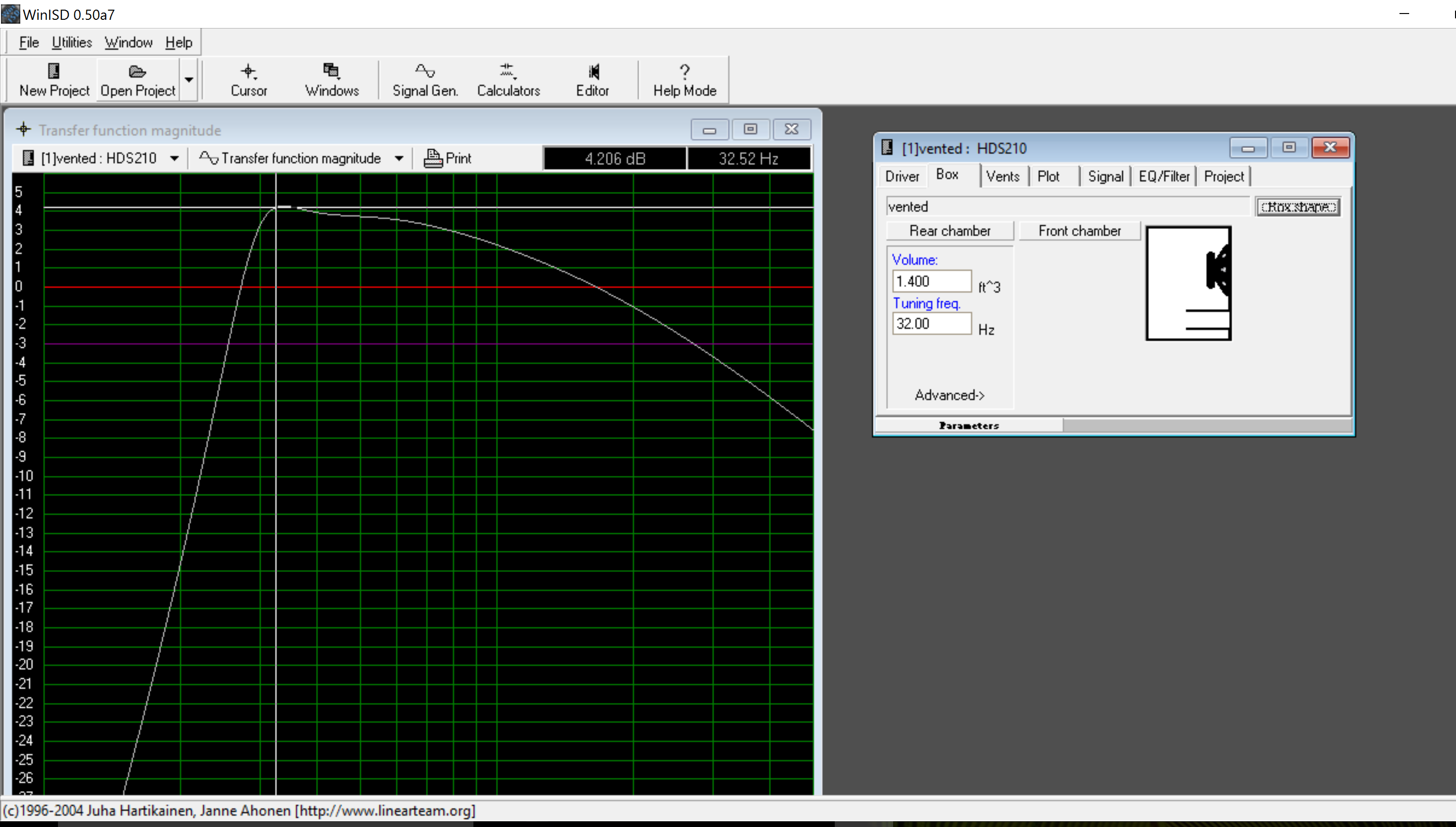

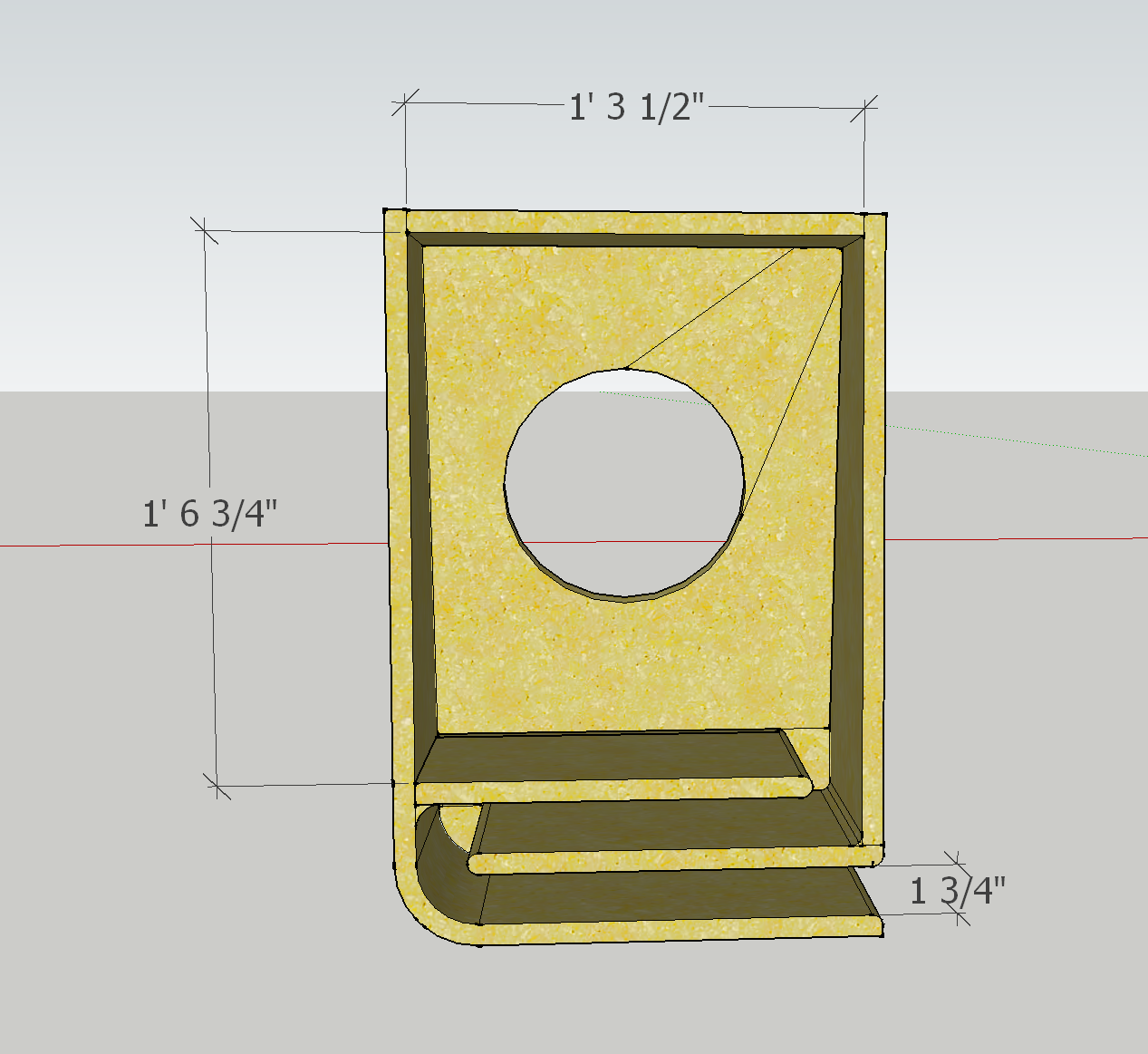

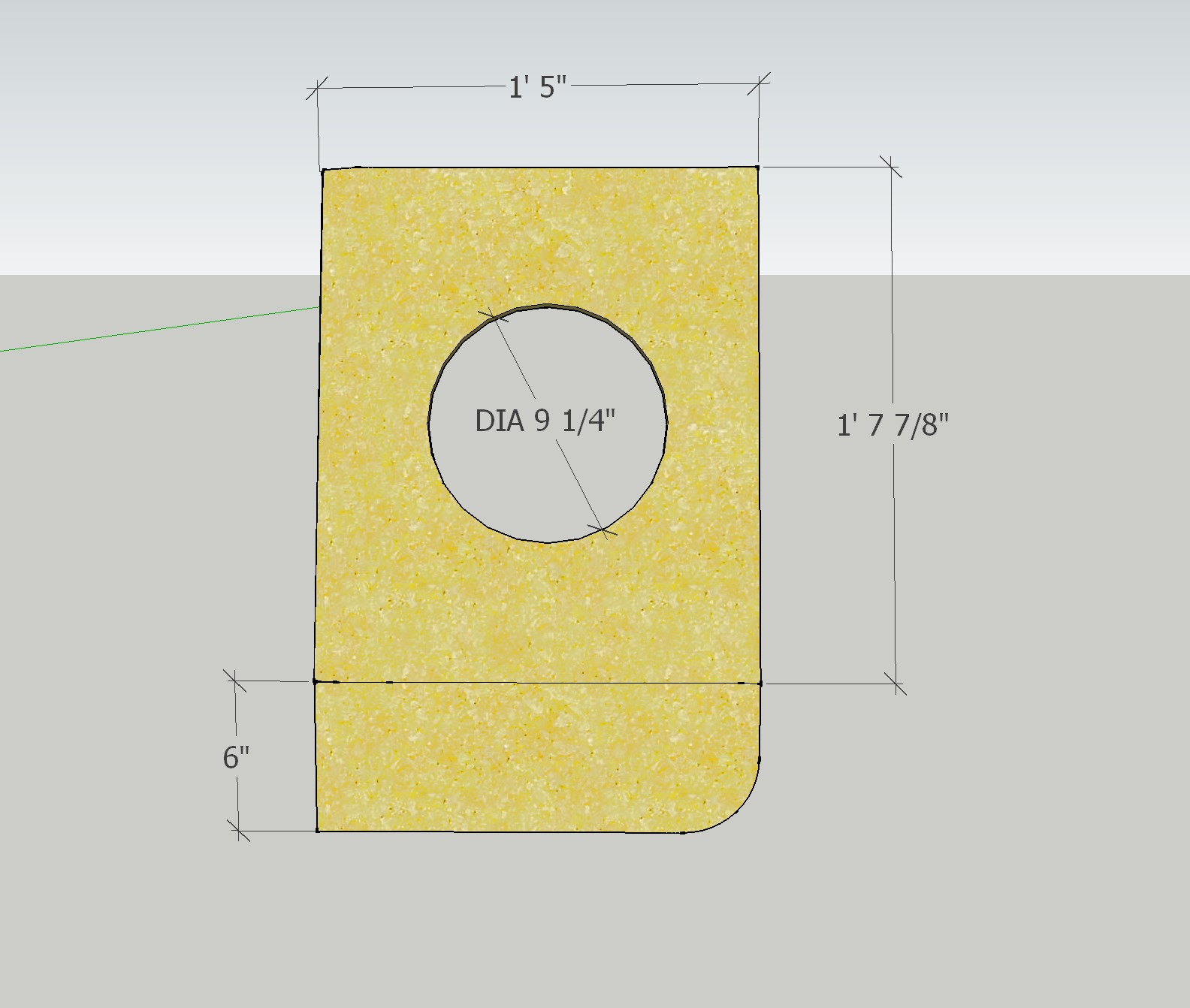

Hey guys, I appreciate all the feedback. I mocked up the box w/ cardboard to see how it'd fit in the cab & thought it was a little too large for the space I have. Decided to go with a wedge box instead. Here's my second design. I would appreciate some more input! I attached a few photos below too.







Share this post


Link to post
Share on other sites

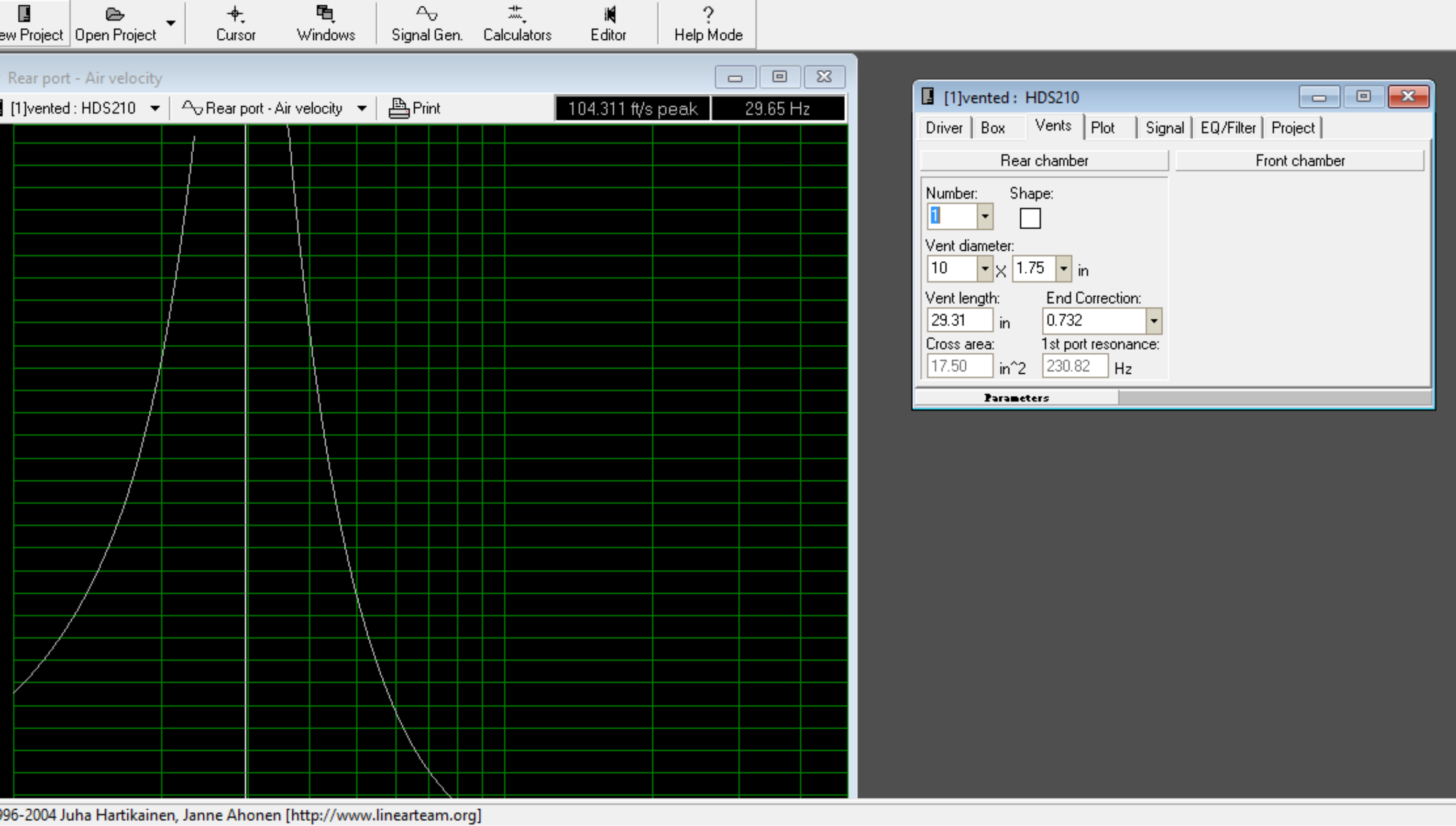

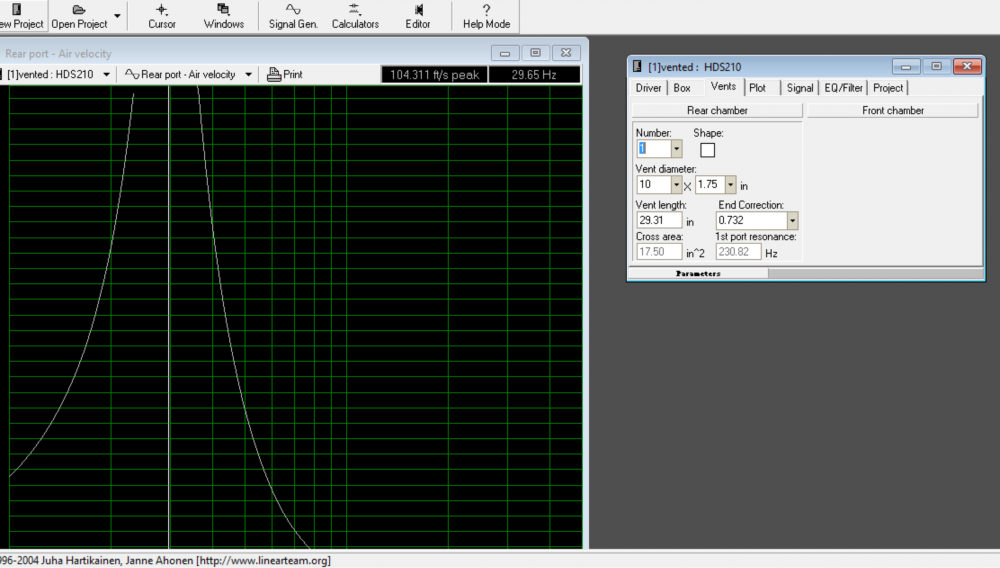

Your design shows a tapered port, you should rework it so it isn't.  Have to either move it to a different face or start at the narrowest part of the triangle.

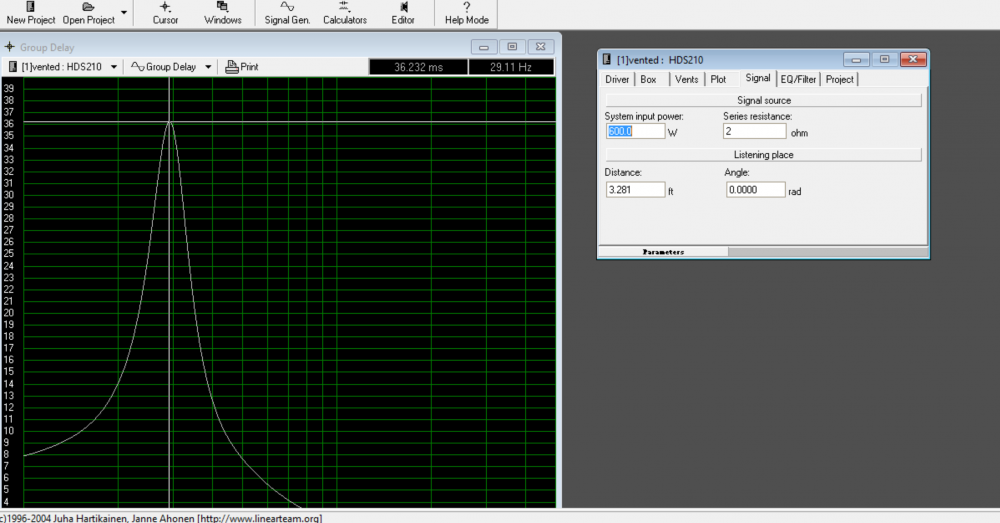

The curves also mean nothing when you crop off the axis labels...

Share this post


Link to post
Share on other sites
