Wakeboard tower speakers

Recommended Posts

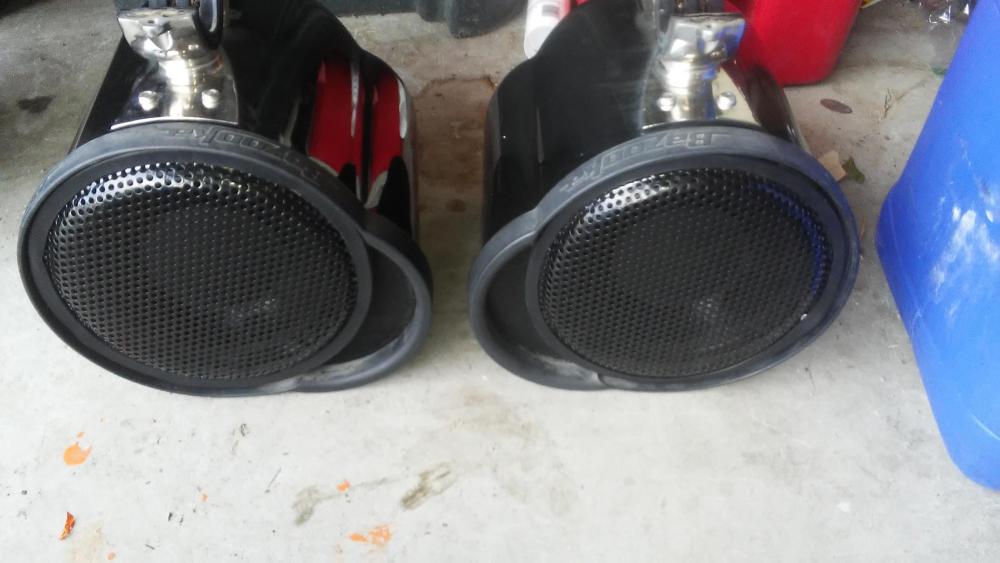

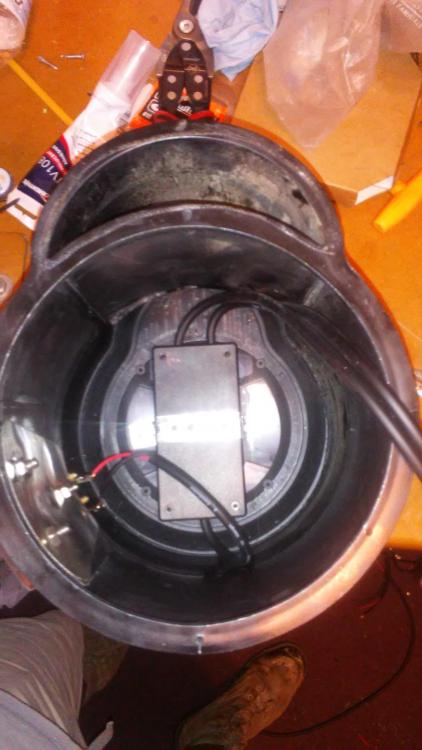

I went ahead and designed some retrofits for a pair of Bazooka wakeboard tower speakers. The crossover took some time but came out decent in the end...









Share this post


Link to post
Share on other sites

I posted this in advance discussion do to the crossover design. Ill post details about it later and answer any question.  There was a lot of work getting decent response...

Share this post


Link to post
Share on other sites

Interested in your driver choice.  My wakeboard boat is without after they got stolen last year

Share this post


Link to post
Share on other sites

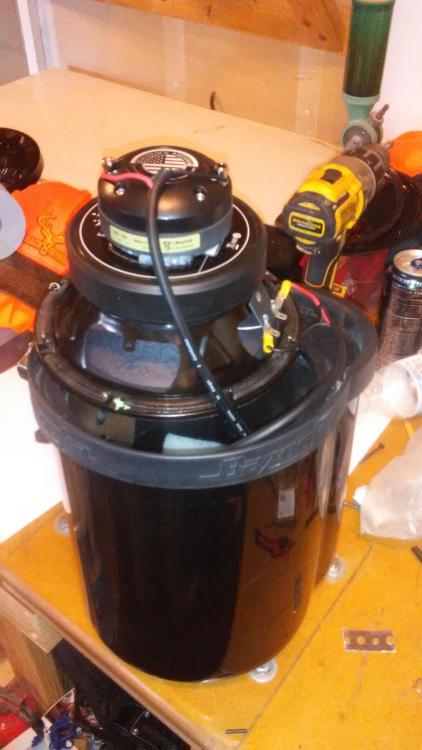

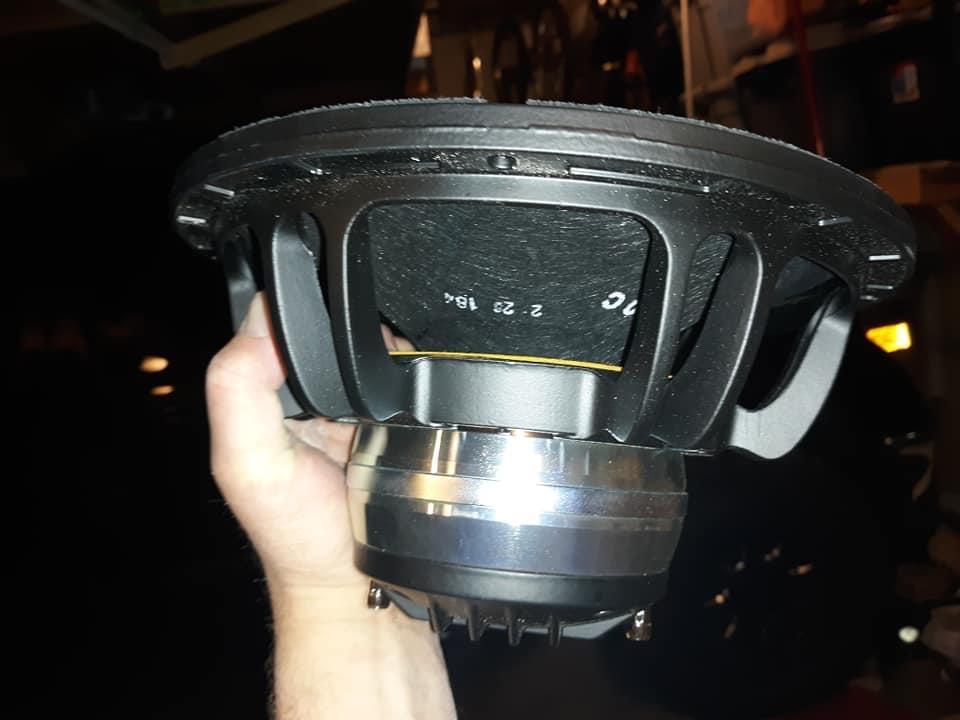

So I went with Eminence 8" Beta coaxial drivers and the ASD1001 compression tweeter. I coated the woofers with "Wet Look" from Parts-Express to help with moisture. If I had to do it over again I would have chosen a different tweeter. It has a huge 12 db dip around 7K when ran through the Beta 8. Eminence's own driver measurements had dips like mine, Ill post them later. Anyway it made crossover design much tougher than it needed to be but those tweeters are only $24 each so I lived with it. If You look at the response I let it rise after 15K because I have a R/C eq circuit that altered the impedance enough already without getting more complex. It adds a little semblance to vocals but I think it will be ok outside on the boat. I think some of the higher end 8" coax drivers from the Italian manufacturers would be better but the price almost triples. These get pretty loud and clear and are pretty efficient...

Share this post


Link to post
Share on other sites

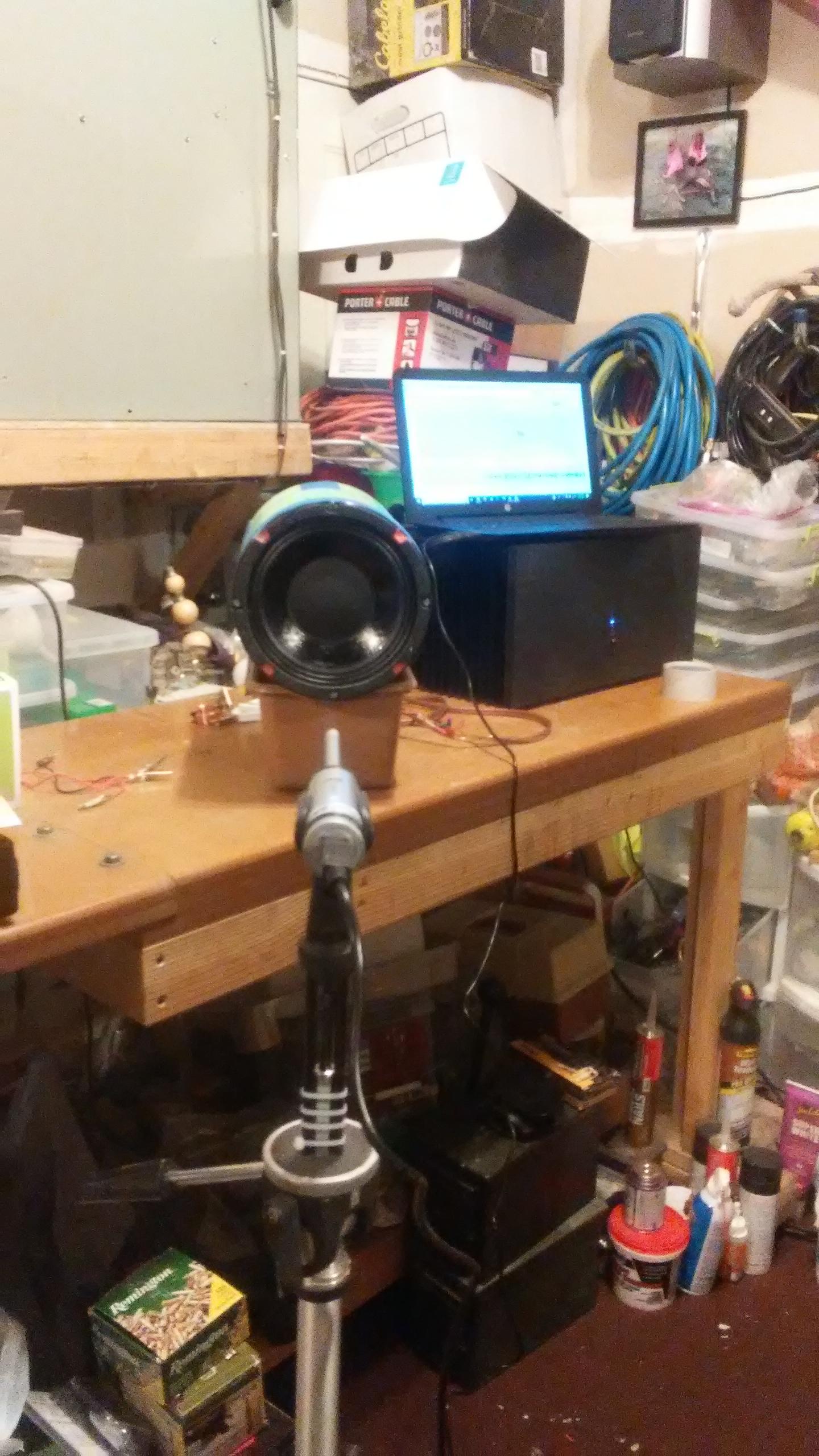

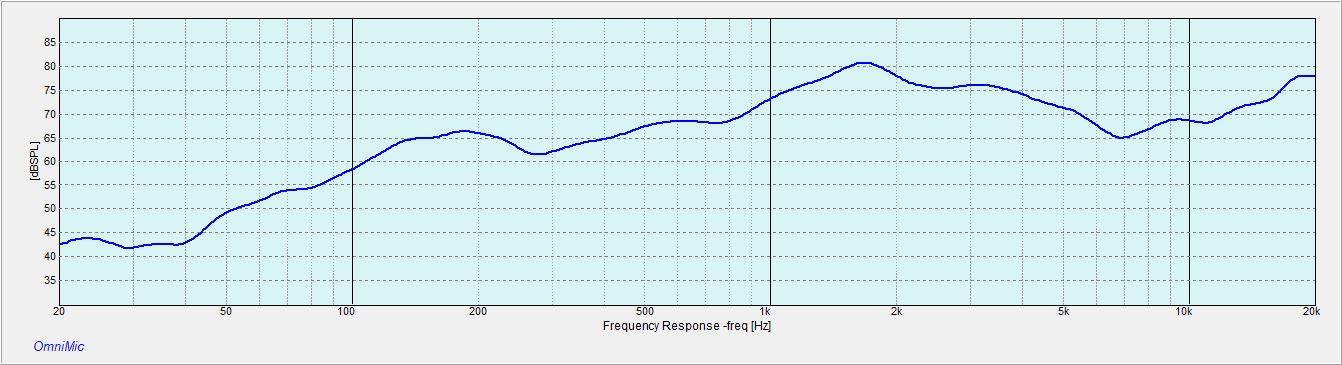

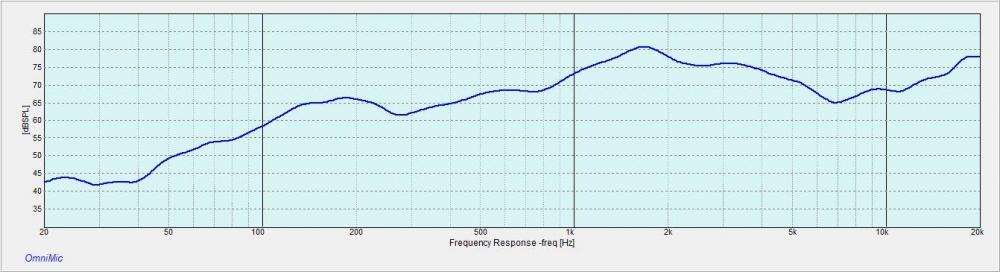

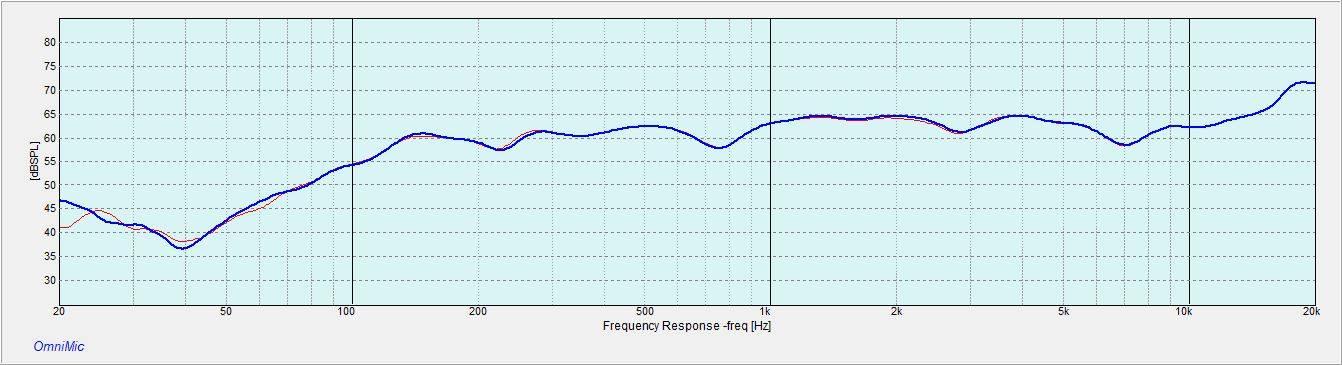

Here is the response of both drivers, combined and unfiltered.

Unfiltered combined 1 meter on axis.jpg

Share this post


Link to post
Share on other sites

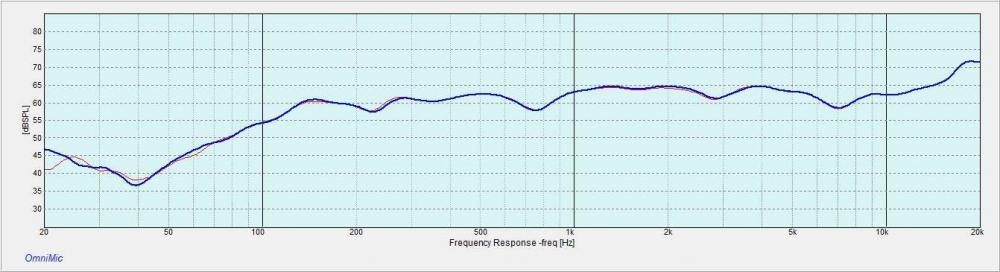

Here is just the tweeter on Axis.  Compare it to the Eminence measurements and had dips in tweeter response as I found really came through when mounted to the Beta 8.  Not good...

ASD1001 1 meter on axis.jpg



290-500--eminence-beta-8cx-specifications.pdf

290-525-eminence-asd1001s-specifications-44698.pdf

Share this post


Link to post
Share on other sites

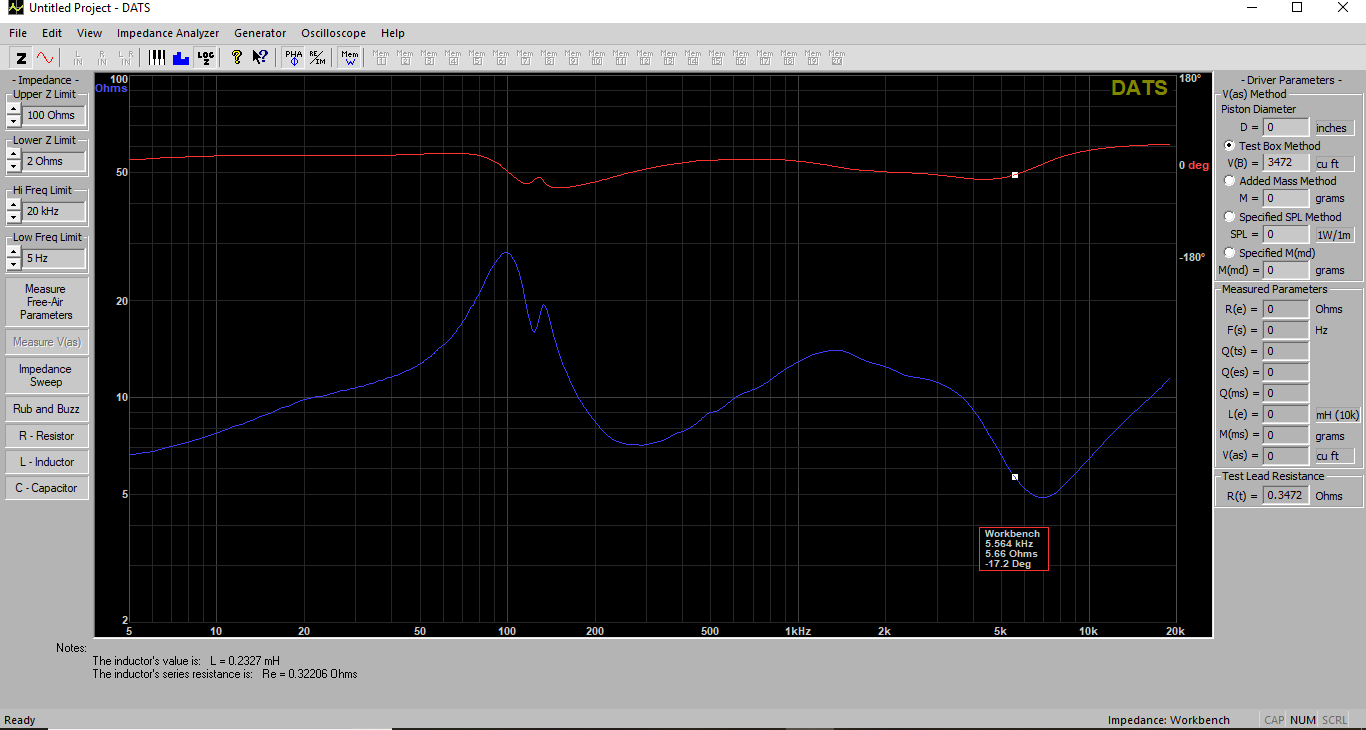

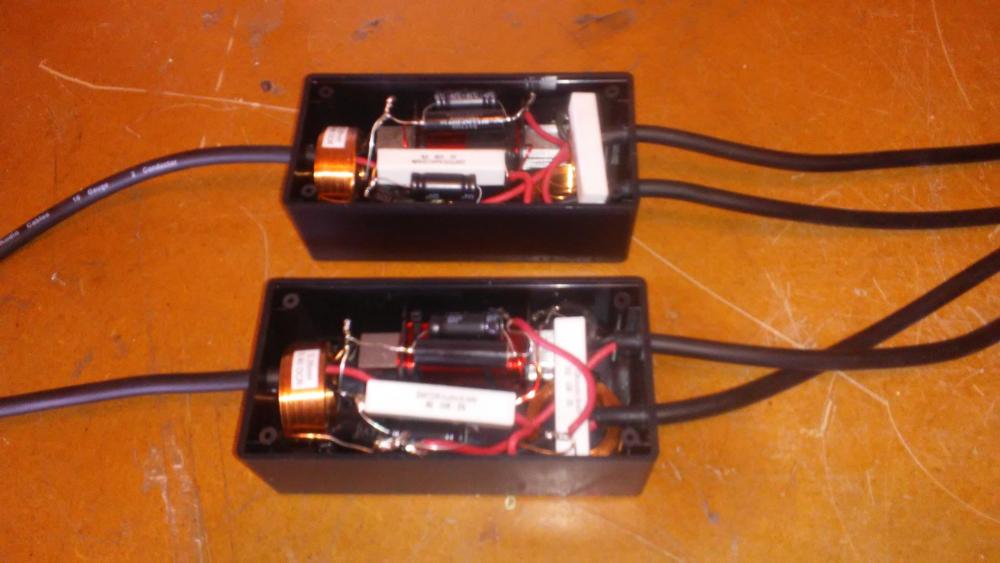

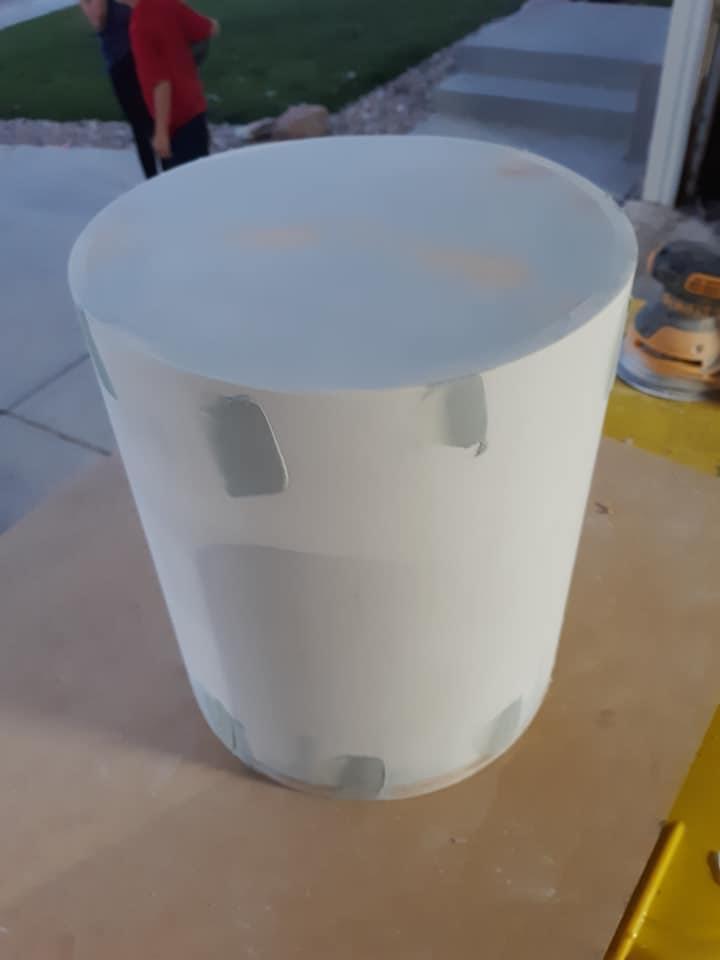

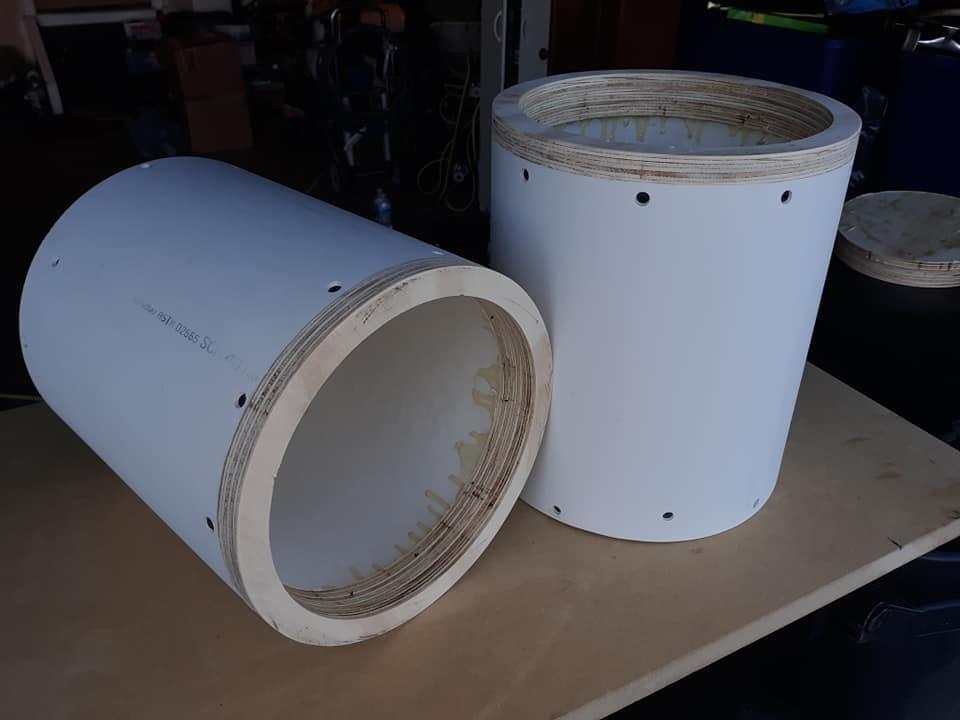

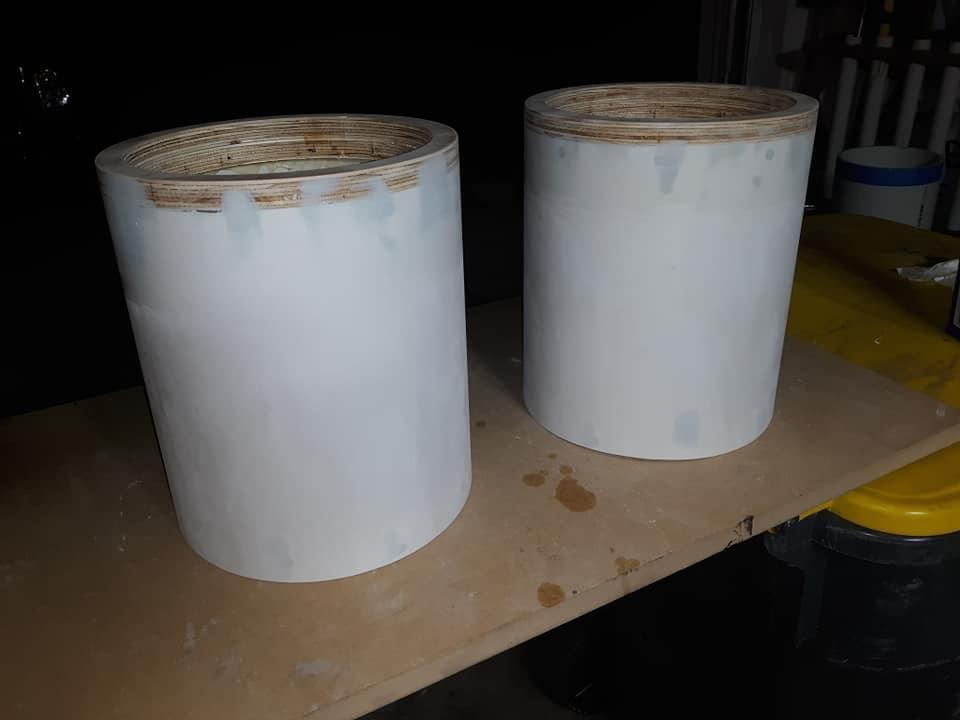

Once I was able to get the tweeter response tamed they combined pretty good.  I ended up with a 1st order filter centered around 3Khz with a Zobel network on the woofer and the tweeter ended  up with a 3rd order electrical centered around 3.5Khz with a R/C series equalizer circuit that started rolling off around 5Khz at 6db/octave.  If you look at the combined response in the first post it isn't too bad.  There isn't much below 100Hz as the enclosures aren't tuned much lower than that from Bazooka.  That is OK in the boat though, they are highpassed at 125Hz from the head unit.  Bass is handled by a pair of PSI Bassline 10s, they fill out the bottom nicely.  If I were going to build these again I would just use a piece of the schedule 40 PVC pipe I used for measurements with a solid end cap made of marine grade plywood.  I think the bass would be a little better and the the enclosure would probably end up fully stuffed with Dacron.  One thing I will say is these things are LOUD.  I didn't get a chance to accurately calculate 1w efficiency, but if driver data is accurate from the manufacturer the system should be about 93 db 1w/1m.  Not too shabby.  Easy load to drive, too.  The cool thing about using these kinds of drivers is they are really hard to blow with reasonable power.  My buddy is going to have about 200 watts driving each speaker, at full clipping I am not sure he will be able to reach thermal limits with normal music.  The Bazooka 8" coaxs only would last a weekend before one would melt down, I don't think he will have the same issue with these...

Share this post


Link to post
Share on other sites

so 2nd weekend out on the boat with these.  They sound pretty good and have absolutely been bomb-proof.

Share this post


Link to post
Share on other sites

Awesome!  Once my kids actually want to wakeboard I am gonig to build some as well.  Right now I surf a couple times a summer and that is about it.

Share this post


Link to post
Share on other sites

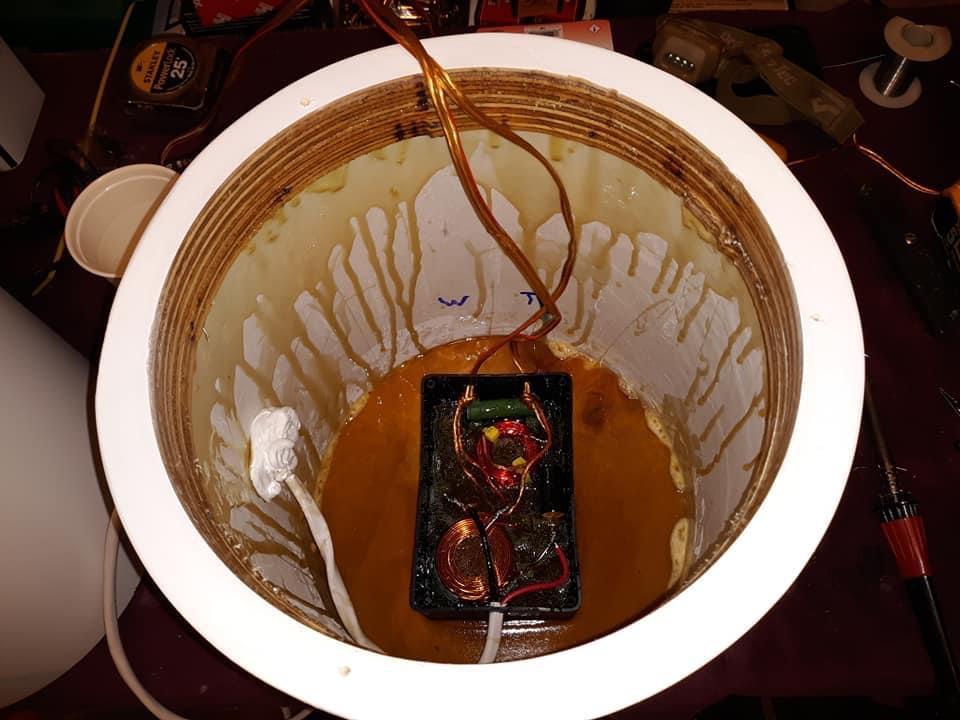

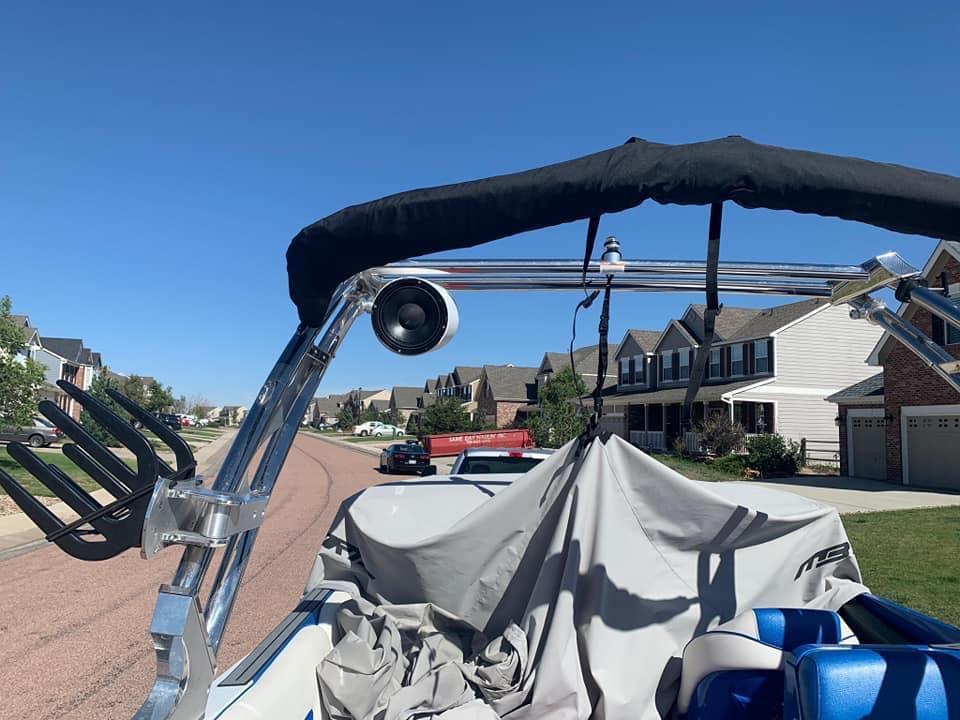

I think you would be happy with something like this. The only downside is you need to cover them when not in use due to the fact that they can't take direct water like marine speakers. But marine speakers don't really sound that great for the most part so it is well worth the compromise.



Share this post


Link to post
Share on other sites
On 8/14/2018 at 1:13 PM, ///M5 said:

Awesome!  Once my kids actually want to wakeboard I am gonig to build some as well.  Right now I surf a couple times a summer and that is about it.

I designed a bigger set using B&C 10 neo coaxs. It was a lot of work to get the crossover right with a low parts count but man, they actually sound really good. The went onto an MB B-52









Share this post


Link to post
Share on other sites

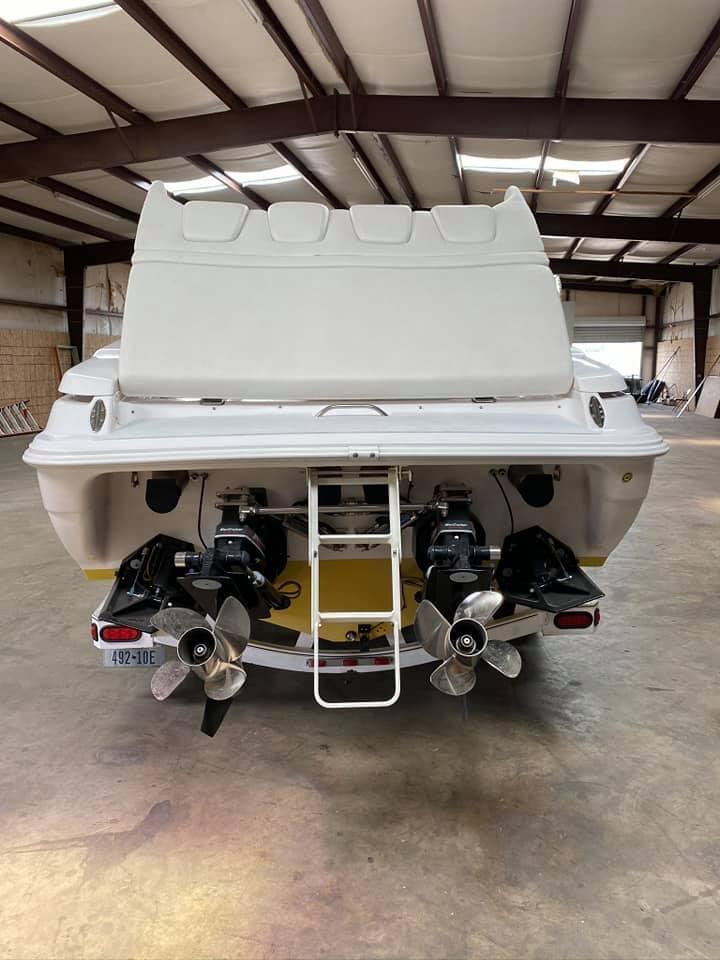

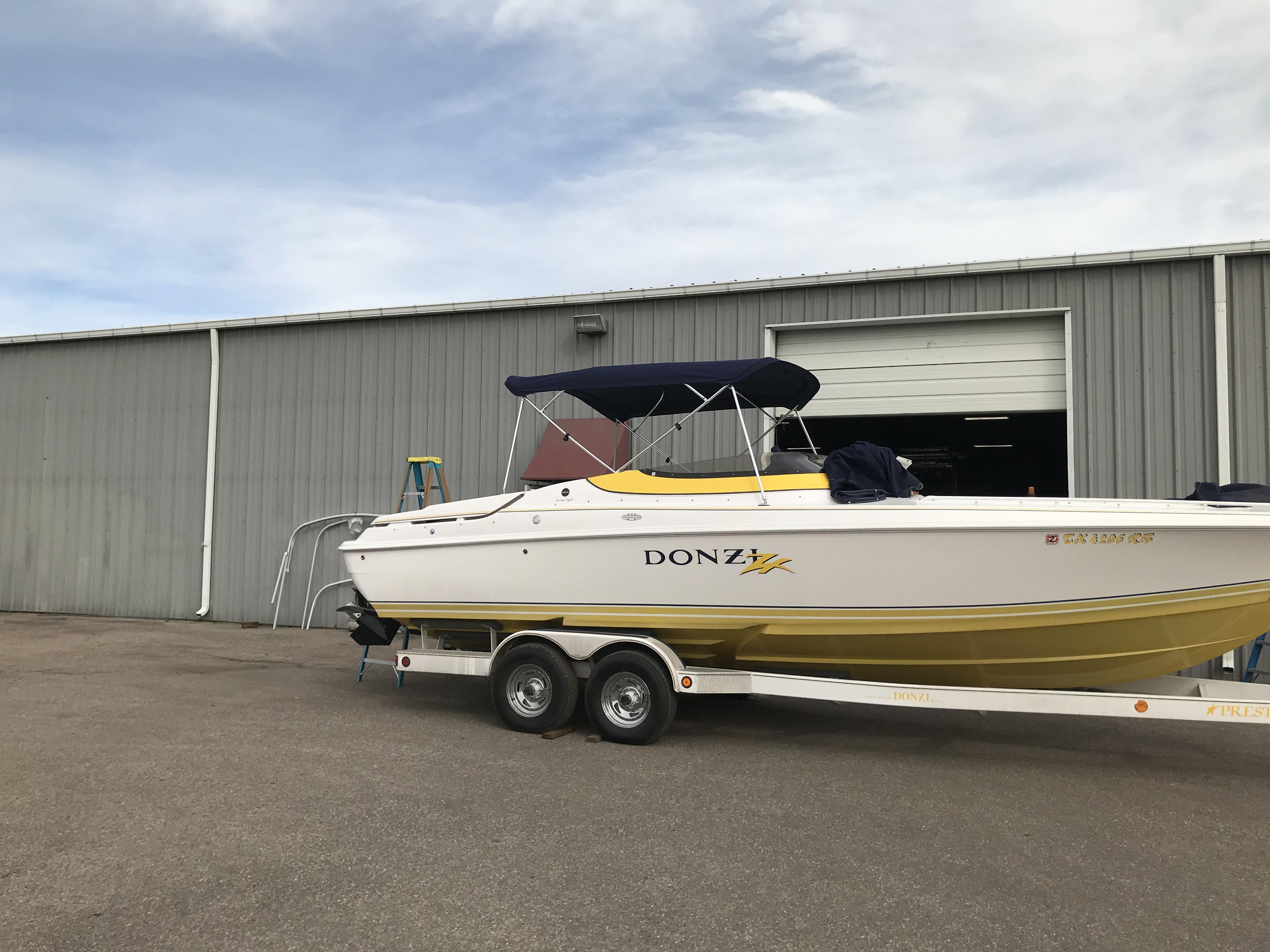

I bought a 28’ Donzi a few months ago. I’m going to put a tower on it for a decent set of cans I’ll design. I think a 15” or 18” sub in the mid cabin too...




Share this post


Link to post
Share on other sites

350 Mags. 01’ with 240 hrs on it. Not a scratch on the hull, trailer queen...

Share this post


Link to post
Share on other sites

Awesome. Going to be a fun summer.

Share this post


Link to post
Share on other sites

Yes it is. Just need to figure out what I’m going to put it in. Both cans I designed sounded really good, but I might go back to a higher end 8”. I’ll look and see what is available in March. I also need to look at the boats electrical, there are dual alts and 4 batteries, but the alts are roughly 90 amp i think. JS makes high output marine alts, I might look into those. You are normally at 4K RPM or higher for charging so not really sure about a lot of the car audio alts. I have some homework to do.

Share this post


Link to post
Share on other sites

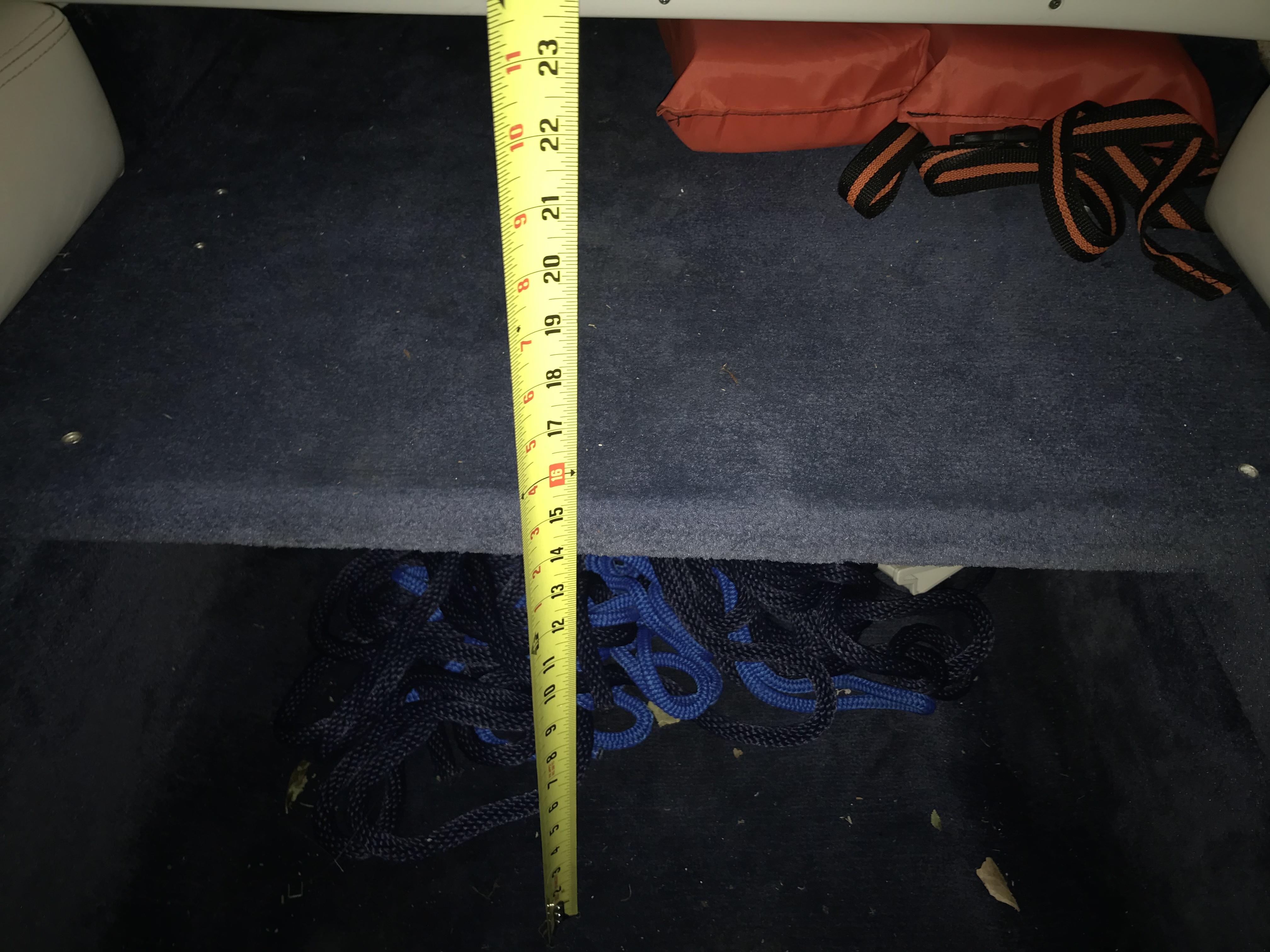

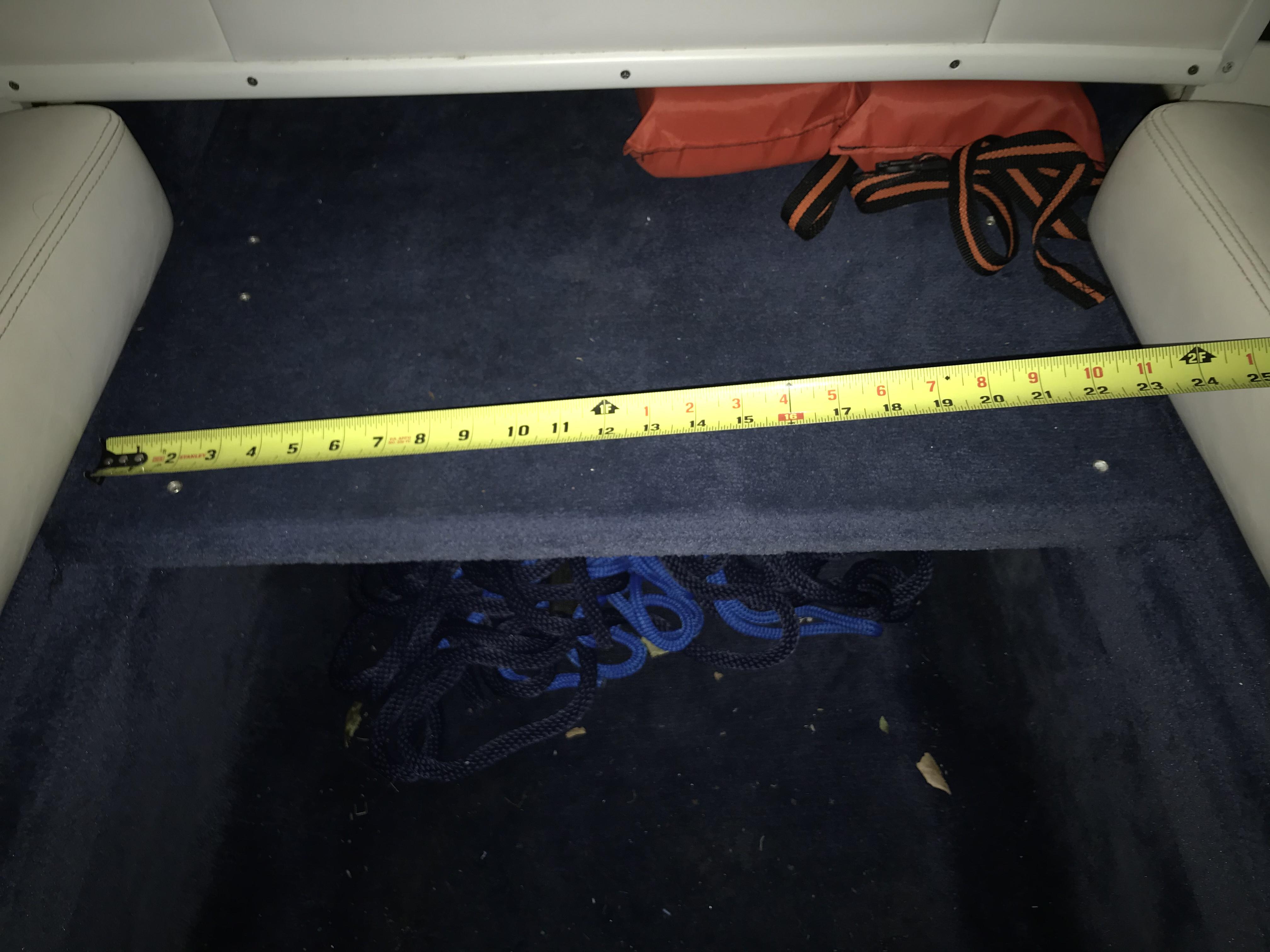

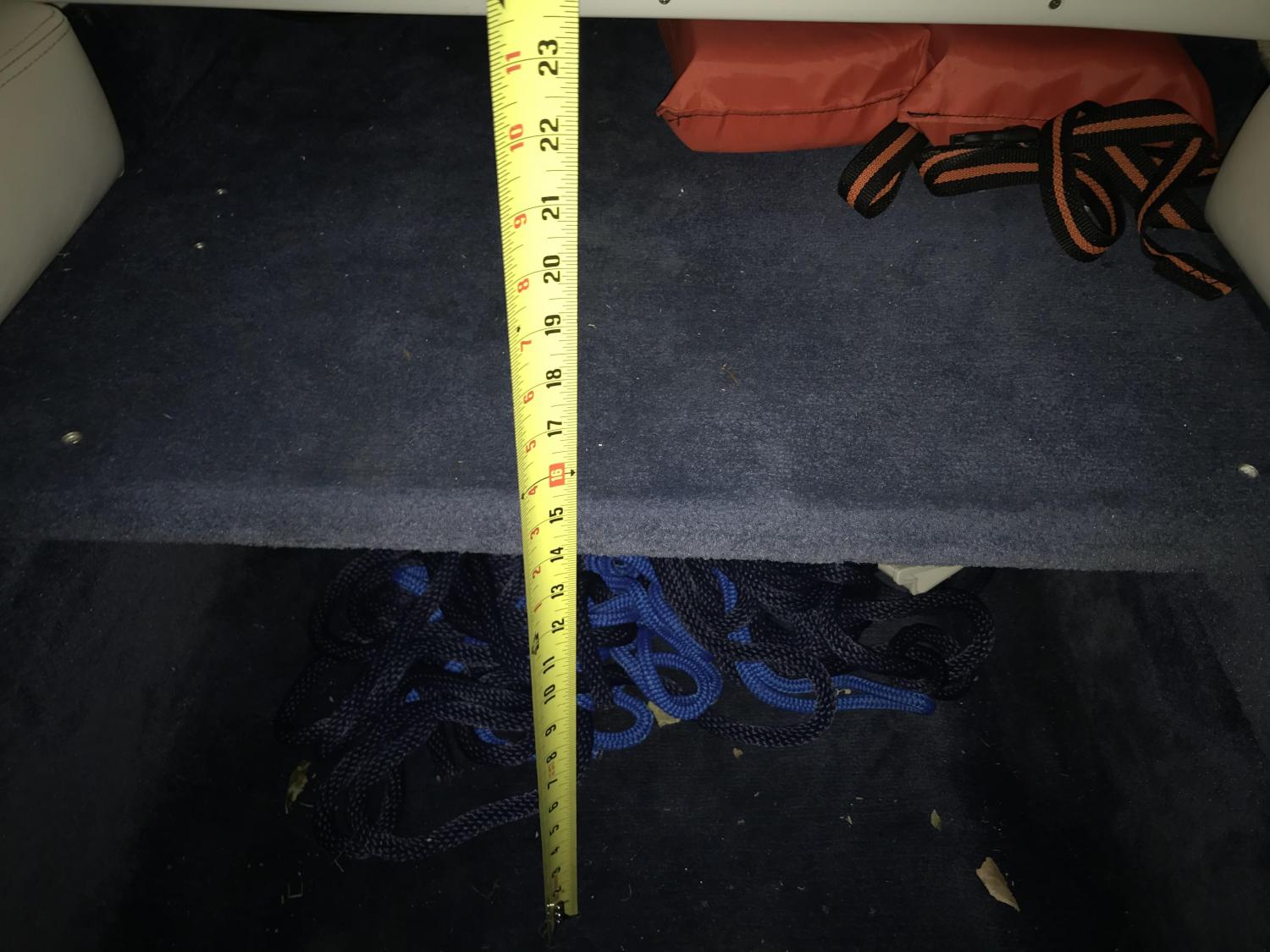

I think for sub I’m going to do a 12” in a standard 4th order vented alignment. I am thinking of pretty stout driver, either one of the zCONs or a PSI platform 4 or 5... I figure I could have around 3ft3 to play with... I still haven’t even turned on the stereo it came with yet... The components look like decent JL drivers...



Share this post


Link to post
Share on other sites

Spammer lol ^^^^^

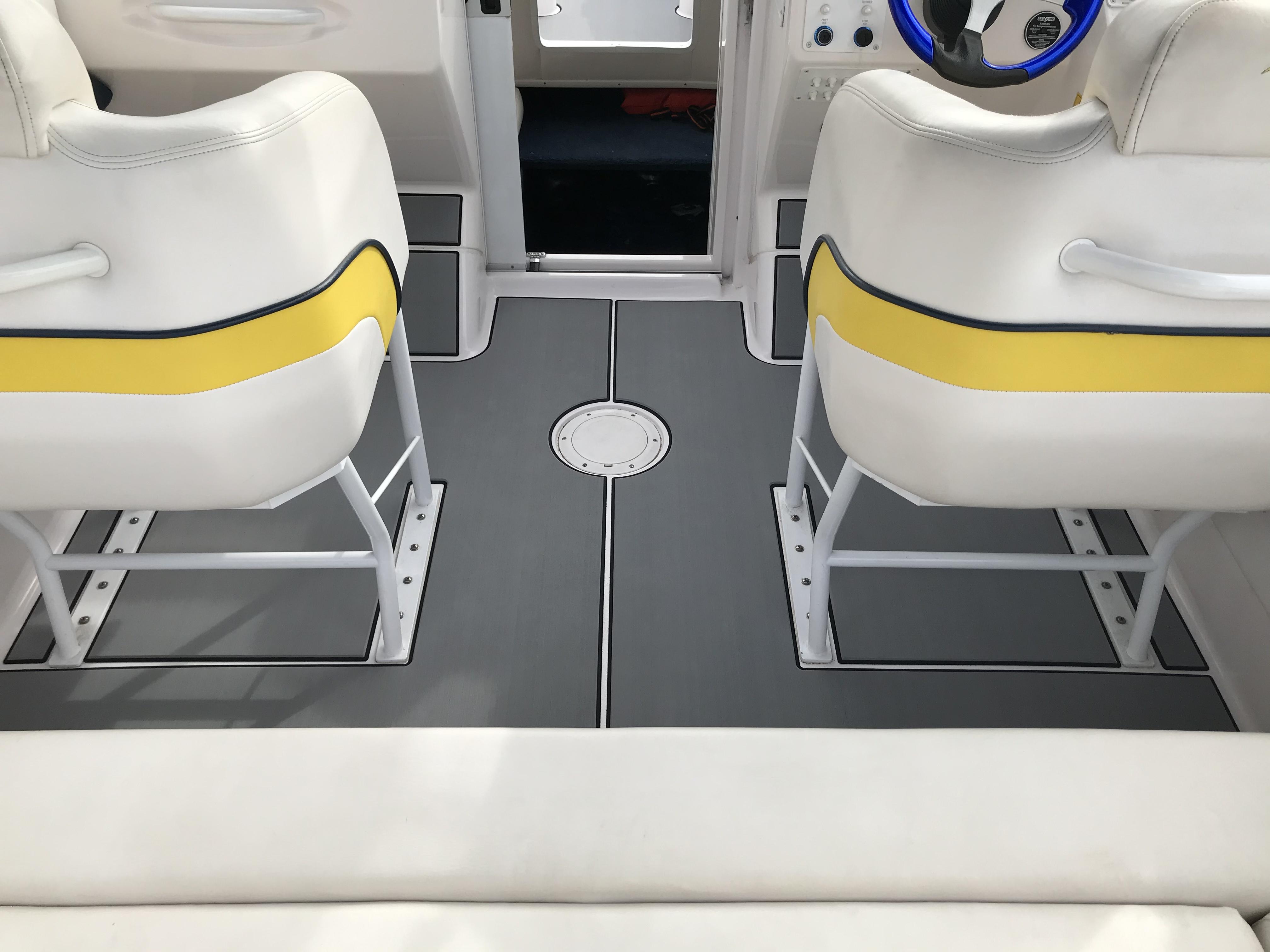

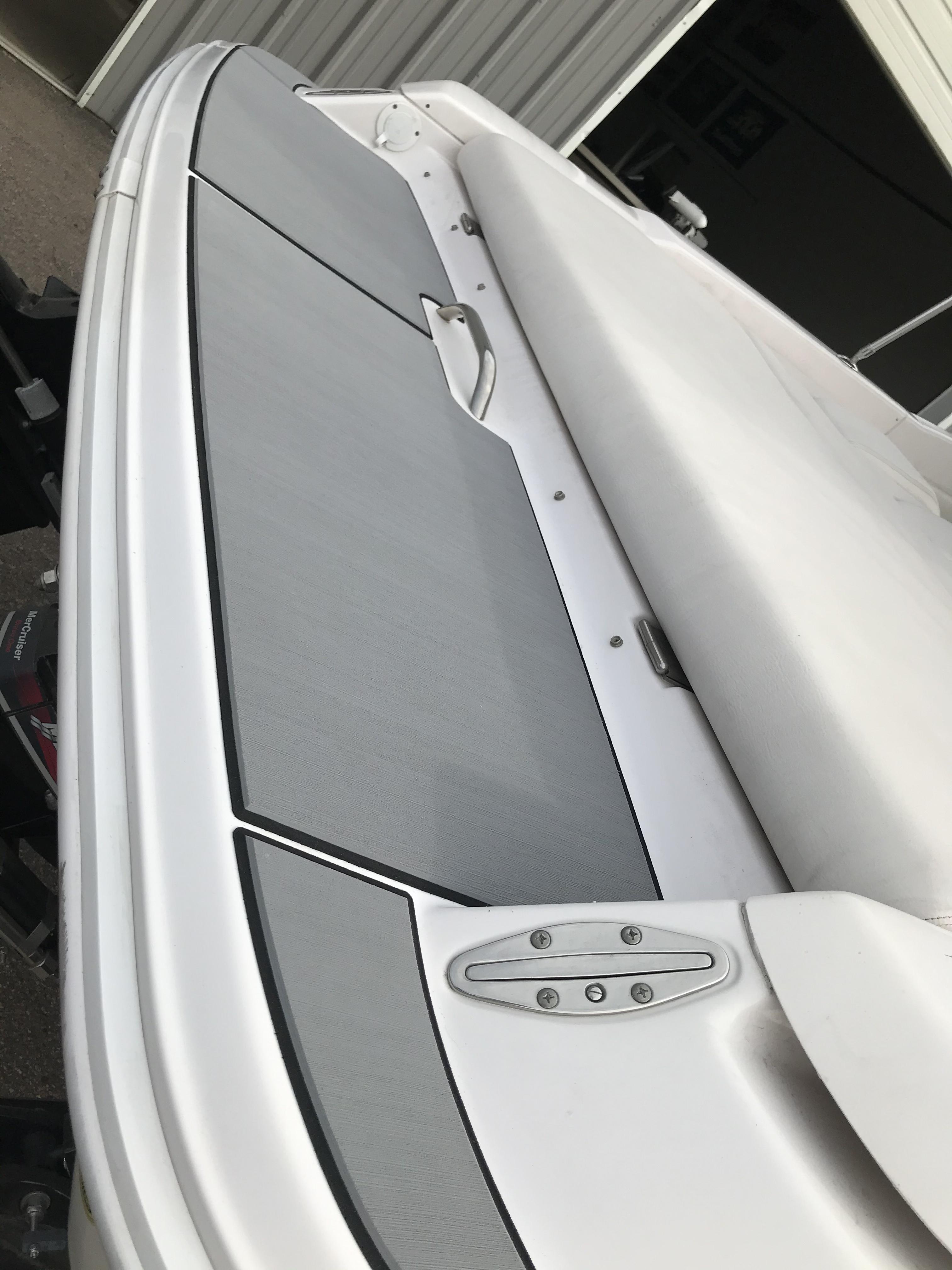

on the flip side, just had a Bimini made and SeaDek put in, gonna be a good summer...





Share this post


Link to post
Share on other sites
